Weaner flooring Country of Origin: Main Export Markets:

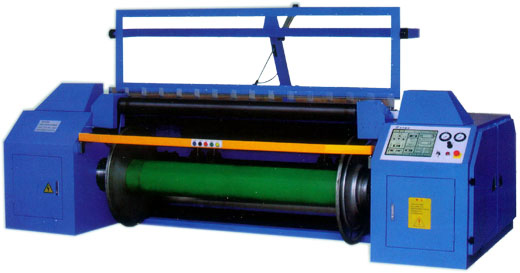

HF128 High Speed Sectional Warping Machine Post Date :2008-07-08 Expire Date :2009-07-08     View Basket Detailed Trade Lead Description Main Charactenstic ● Warping winding is of direct warp beam driven, ensure warp winding under constant tension.。 ● Fully computerized control by Mitsubishi Fx2N-48MT and frequency speed control ensure constant surface speed. ● 10.4-inch Digital touch screen, easy operation,direct and information, comprehensive trouble shooting and analyze. ● Pneumatic controlled press roll ensure the required winding density.Pressure adjustable.Press roll bounce quickly upon braking to avoid friction between roll and yarn. ● Complete integrated pneumatic system for automatic loading and doffing,versatile application for all types of beams. ● SANTANT car’s disc brake system specified for braking of warp beam to ensure reliable brake in short time.Electromagnetic brake for press roll and guide bar ensure steady and instant stop. ● Varieties KOYO precise sensors available for monitoring of warping speed and length,winding thickness as well as air pressure. ● Expansion reed move left and right, up and down automatically.The ratio of its traversing speed to the warping speed can be initialized according to different processing demands.It vertical motion avoids friction of reed. Reed gap adjusted by motor,powerful intermittent blower keep reed clean. ● Pneumatic controlled windshield move up automatically along with the operation of headstock. ● Safety guard rail and infrared raster guarantee safety of operation. ● Several types of bobbin creels and tensioners available for option. ● Cone ends and cone pitch to order. ● Broken end stop motion device is of infrared ray type,sensitive and reliable. Main Technical Parameters 1、 width 1400-2800mm(optional) 2、 .Dia.of beam 800、1000、1200mm(optional) 3、 Braking distance ≤2m（500m/min） 4、 Reed traversing speed 0-2mm/r 5、 Reed traversing travel 10-20mm 6、 Warping speed 10-800m/min 7、 Winding density 0.3-0.65g/cm2 8、 Single yarn tension 10-60cN 9、 Tension fluctuation ±3cN 10、 Operation display 10.4-inch Japanese Digital touch screen 11、 Bobbin creel rectangular fix type,rotary type(optional),small V type 12、 Spindle pitch 250×250mm or made to order 13、 Yarn ends 640 spindles or made to order 14、 Input voltage 3×380V ±10% 15、 Motor power 11kw(optional) 16、 Frequency inverter 11kw(optional) 17、 Weight of machine 3200kg 18、 Weight of bobbin creel 2800kg

	Products
	More products from this category HF-A02 HFGA 121 High Speed HFGA 120 High Speed HF968D Electrical se HF988C Intelligent S   More

	Contact Detaile
	Company Name: Jiangyin Changshou Inductrial Contact Person: Miss.wu Address: NO.20Yungu Road,Changshou Town,Jiangyin,Jiangsu,China Phone: 0510-86366223 Fax: 0510-86366223 Website: http://www.h-fang.com/wz/tech_en.htm Email: huafang@texindex.com Send Message: Random code: * Please enter the letters displayed in the image for security purpose.
