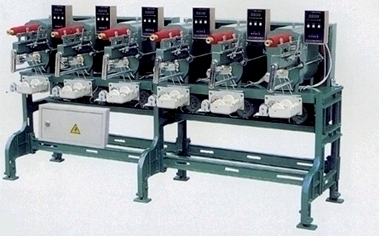

CL-A winding machine (Pagoda Type)

Post Date :2015-05-28

Expire Date :2015-11-04

View Basket

Detailed Trade Lead Description

CL Model winding machine has four series, i.e. A type pagoda, B type cylinder, C type cone and CL Model single-spindle winding machine (especially design for the thread dividing work in clothing plant and embroidery plant). Each series has been shaped into the effective length according to the balls with various specifications. The common specifications are 1.5 inch (38mm), 1.8 inch (45mm), 2 inch (50mm), 3 inch (75mm), 3.4 inch (85mm), 3.6 inch (90mm), 3.8 inch (95mm), 4 inch (100mm), 5 inch (125mm), 6 inch (150mm). It may also produce the special specifications goods according to the consumer's requirements.

CL-A winding machine (Pagoda Type)

Function features:
It is equipped with the new generation computer measuring apparatus.
It is equipped with the thread break auto-stop device.
It is equipped with the electron tension and silicone oiling device.
It is equipped with the disconnecting automatic memory function.

	4 "	5 "	6"
No of spindles	6spindle	6spindle	6spindle
Cone for each spindle	2	2	1 or 2
Thread Length	0-10000m	0-15000m	0-30000m or 1000g
Motor	380V/220V 50Hz 180WX6
Machine volume	2.25(or2.08)ML × 0.70MWX1.15MH/2.25(or2.08) ML×0.80MW× 1.15MH
Weight of the Machine	420Kg
Measurement	2.35(or2.17)ML×0.80MW×1.25MH/2.35(or2.17) ML× 0.90MW× 1.25MH
Weight	550Kg
