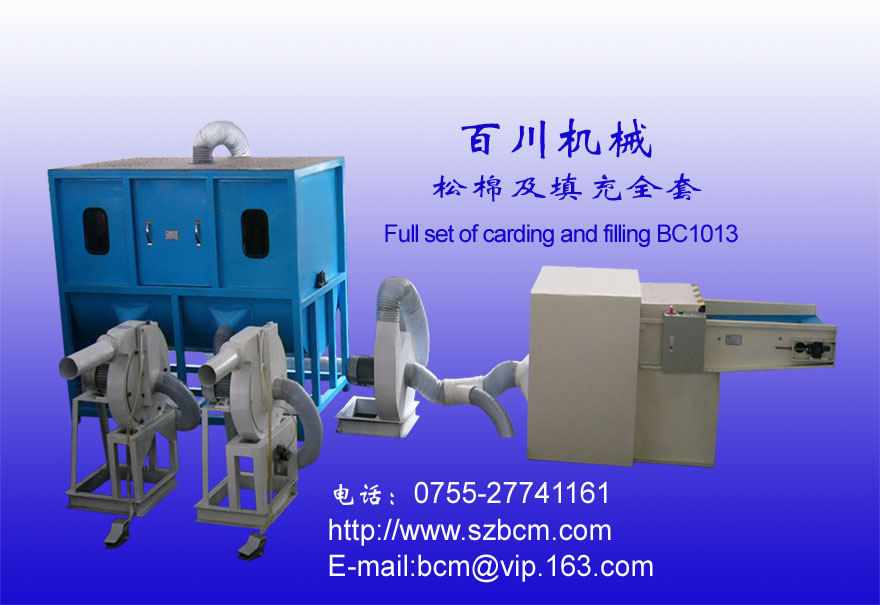

| full set of fiber carding & filling machine BC1013 |
| Post Date :2011-12-14 |
| Expire Date :2008-10-23 |
 View Basket |
| Detailed Trade Lead Description |
| Model BC1013 Fiber opening
BC1001-560 Fan feeding machine BC503 Mixing machine
BC1003-B Filling machine
BC502
Belt width 560mm -- -- --
Dimensions (mm)(L*W*H) 2050*900*940 610*520* 800 1840*1100*1680 850*540*960
Power 4.75kw 2.2kw 4kw 1.5kw
Net weight 600kg 75kg 400kg 70kg
Capacity 120-150kg/hour Match fiber opening Match fiber opening Match fiber opening
Voltage 380V, 50Hz, 3Phase 380V, 50Hz, 3Phase 380V, 50Hz, 3Phase 380V, 50Hz, 3Phase
Container size -- -- 2CBM --
Air pressure -- -- -- <0.5MPa
△ Suitable for upholstery, Sofa and bedding production
△
△ The fiber carding machine is with metal detector, when there are some metal pieces on the machine’s belt, the machine will stop and turn reversely, carry the metal pieces out. In this way, it can avoid the machine being damaged.
△
△ BC1013 is the most favorable model by the customer who needs to add other material during the backrest, cushion, pillow filling process.
△ BC1001-560 for carding polyester, glue-spray cotton, BC1003-B for mixing other materials, such as wool, foam pieces, feather, BC502 for filling all the material into backrest, cushion, pillow.
△ Since BC1003-B has 4 outlets, it can match 1-4 BC502 to enhance the productivity.
△ Other match is available,
BC1001-560 + BC1003-S + BC502;
BC1001-790 + BC1003-B + BC502
|
|
|
