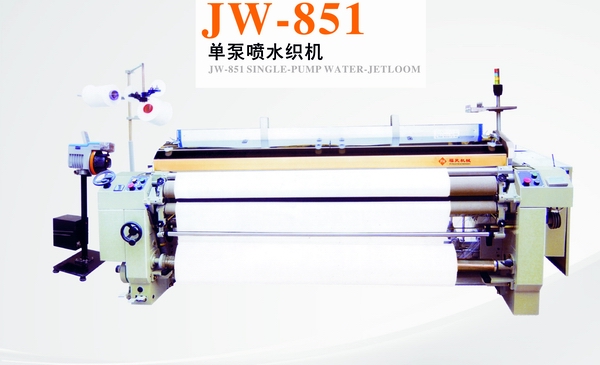

| JW-851 SINGLE-PUMP WATER-LET LOOM |
| Post Date :2013-08-15 |
| Expire Date :2013-02-21 |
 View Basket |
| Detailed Trade Lead Description |
| Jw-851 model is based on Jw-813 model and to configure dual jet free weft storage models,which is applied to fabric textile production.such as high twist yarn,ammonia-coated wire,the product have good performance to weaving high density fabrics,high speed,stability.This type can match dual jet,cam opening device,dobby opening device.
Optional breadth:135,190,210,230,260,280,340,360cm
Weft insertion rate:most 2280 meter per minute
Speed:design highest rev 1200RPM(The actual speed determined in accordance with fabric specifications)
Number of heddle frame:2,4,6,8piece;most cam opening 10 pieces;most dobby 16 pieces.
Installed power:1.5~3.5KM
Range of weft density:5~60 thread cm
|
|
|
| |
