Product Usage:

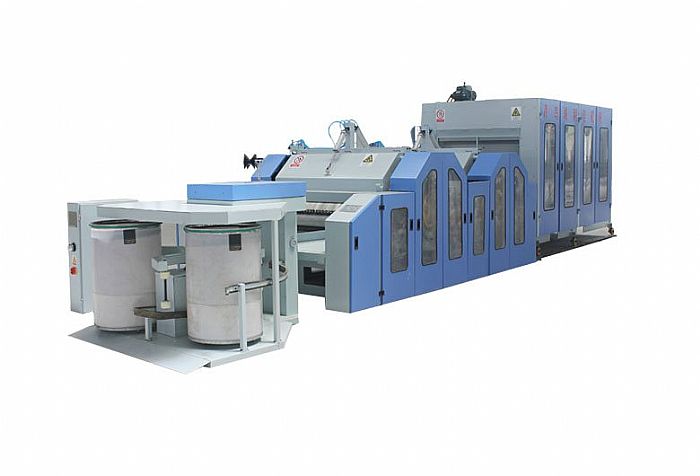

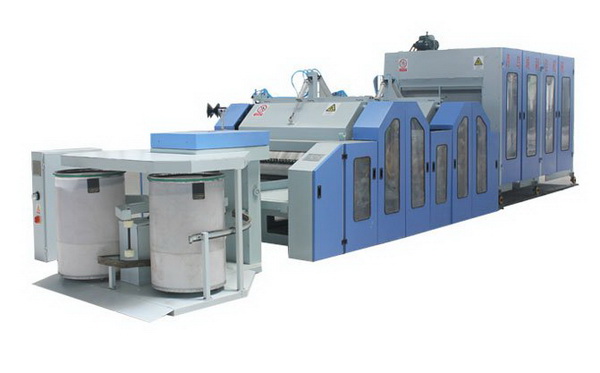

This machine is applicable to open,card and blend chemcial fibers and mixed fibers,condense them into wool tops of certain specifications ,and then coil them into sliver can regularly for the following process.
1、Machine width : 1500mm
2、Applicable material； Chemical fiber and its blendings, with the length 25-127mm and the finess is 0.8-30D
3、Feeding form : single-box volumetric type automatic continuous feeding with photoelectric control
4、Delivery tops weight : 7-20g/m
5、Total draft multiple: 32-140
6、Max. delivery speed : 200m/min
7、Max. productive capacity : 240kg/h per set
8、Cylinder working dia: Φ770mm
9、Cylinder speed: 400 RPM(frequency control)
10、Licker-in working dia: Φ250mm
11、Licker-in speed : 600 RPM(frequency control)
12、Doffer working dia: Φ650mm
13、Doffer speed: 10-75RPM (frequency control)
14、air consumption for dust suction(continuous): 2200m3/h per set
15、Coil type Manual type: 3-position or 4-position automatic can changer
16、Applicable sliver can specification： Φ600×900，Φ400×1100（optional）
17、Total power: 12.8kw
18、Floor face Width : 1.5m 11000*2560
19、Machine weight(L*W) : 11000kg
|
